delta_t Class Reference

Class corresponding to the delta_t schema type. More...

#include <ConfigurationFile.h>

Inheritance diagram for delta_t:

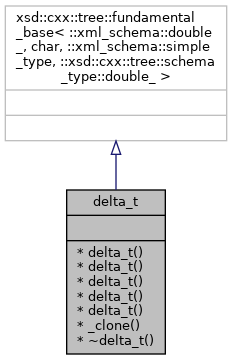

Collaboration diagram for delta_t:

Constructors
	delta_t (const ::xml_schema::double_ &)
	Create an instance from the ultimate base and initializers for required elements and attributes. More...
	delta_t (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...
	delta_t (const ::xercesc::DOMAttr &a, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM attribute. More...
	delta_t (const ::std::string &s, const ::xercesc::DOMElement *e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a string fragment. More...
	delta_t (const delta_t &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...
virtual delta_t *	_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...
virtual	~delta_t ()
	Destructor. More...

Detailed Description

Class corresponding to the delta_t schema type.

Constructor & Destructor Documentation

delta_t() [1/5]

delta_t::delta_t

(

const ::xml_schema::double_ &

_xsd_double__base

)

Create an instance from the ultimate base and initializers for required elements and attributes.

delta_t() [2/5]

delta_t::delta_t	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

delta_t() [3/5]

delta_t::delta_t	(	const ::xercesc::DOMAttr &	a,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Create an instance from a DOM attribute.

Parameters

a	A DOM attribute to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

delta_t() [4/5]

delta_t::delta_t	(	const ::std::string &	s,
		const ::xercesc::DOMElement *	e,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Create an instance from a string fragment.

Parameters

s	A string fragment to extract the data from.
e	A pointer to DOM element containing the string fragment.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

delta_t() [5/5]

delta_t::delta_t	(	const delta_t &	x,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

~delta_t()

delta_t::~delta_t ( )

virtual

Destructor.

Member Function Documentation

_clone()

delta_t * delta_t::_clone ( ::xml_schema::flags  f = 0, ::xml_schema::container *  c = 0  ) const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns

A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

---

The documentation for this class was generated from the following files:

• /home/runner/work/MolSim/MolSim/src/fileHandling/reader/XMLHandling/ConfigurationFile.h
• /home/runner/work/MolSim/MolSim/src/fileHandling/reader/XMLHandling/ConfigurationFile.cpp
