PointData Class Reference

Class corresponding to the PointData schema type. More...

#include <vtk-unstructured.h>

Inheritance diagram for PointData:

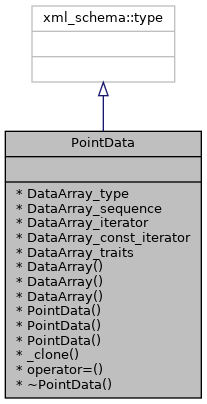

Collaboration diagram for PointData:

DataArray
Accessor and modifier functions for the DataArray sequence element.
typedef ::DataArray_t	DataArray_type
	Element type. More...
typedef ::xsd::cxx::tree::sequence< DataArray_type >	DataArray_sequence
	Element sequence container type. More...
typedef DataArray_sequence::iterator	DataArray_iterator
	Element iterator type. More...
typedef DataArray_sequence::const_iterator	DataArray_const_iterator
	Element constant iterator type. More...
typedef ::xsd::cxx::tree::traits< DataArray_type, char >	DataArray_traits
	Element traits type. More...
const DataArray_sequence &	DataArray () const
	Return a read-only (constant) reference to the element sequence. More...
DataArray_sequence &	DataArray ()
	Return a read-write reference to the element sequence. More...
void	DataArray (const DataArray_sequence &s)
	Copy elements from a given sequence. More...

Constructors
	PointData ()
	Create an instance from the ultimate base and initializers for required elements and attributes. More...
	PointData (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...
	PointData (const PointData &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...
virtual PointData *	_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...
PointData &	operator= (const PointData &x)
	Copy assignment operator. More...
virtual	~PointData ()
	Destructor. More...

Detailed Description

Class corresponding to the PointData schema type.

Member Typedef Documentation

DataArray_const_iterator

typedef DataArray_sequence::const_iterator PointData::DataArray_const_iterator

Element constant iterator type.

DataArray_iterator

typedef DataArray_sequence::iterator PointData::DataArray_iterator

Element iterator type.

DataArray_sequence

typedef ::xsd::cxx::tree::sequence< DataArray_type > PointData::DataArray_sequence

Element sequence container type.

DataArray_traits

typedef ::xsd::cxx::tree::traits< DataArray_type, char > PointData::DataArray_traits

Element traits type.

DataArray_type

typedef ::DataArray_t PointData::DataArray_type

Element type.

Constructor & Destructor Documentation

PointData() [1/3]

PointData::PointData

(

)

Create an instance from the ultimate base and initializers for required elements and attributes.

PointData() [2/3]

PointData::PointData	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

PointData() [3/3]

PointData::PointData	(	const PointData &	x,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

~PointData()

PointData::~PointData ( )

virtual

Destructor.

Member Function Documentation

_clone()

PointData * PointData::_clone ( ::xml_schema::flags  f = 0, ::xml_schema::container *  c = 0  ) const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns

A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

DataArray() [1/3]

PointData::DataArray_sequence & PointData::DataArray

(

)

Return a read-write reference to the element sequence.

Returns

A reference to the sequence container.

DataArray() [2/3]

const PointData::DataArray_sequence & PointData::DataArray

(

)

const

Return a read-only (constant) reference to the element sequence.

Returns

A constant reference to the sequence container.

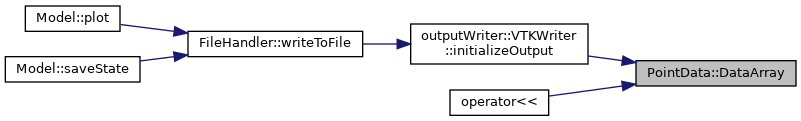

Here is the caller graph for this function:

DataArray() [3/3]

void PointData::DataArray

(

const DataArray_sequence &

s

)

Copy elements from a given sequence.

Parameters

s	A sequence to copy elements from.

For each element in s this function makes a copy and adds it to the sequence. Note that this operation completely changes the sequence and all old elements will be lost.

operator=()

PointData & PointData::operator=

(

const PointData &

x

)

Copy assignment operator.

Parameters

x	An instance to make a copy of.

Returns

A reference to itself.

For polymorphic object models use the _clone function instead.

---

The documentation for this class was generated from the following files:

• /home/runner/work/MolSim/MolSim/src/fileHandling/outputWriter/VTKHandling/vtk-unstructured.h
• /home/runner/work/MolSim/MolSim/src/fileHandling/outputWriter/VTKHandling/vtk-unstructured.cpp
