FileReader Class Reference

Class for reading particles from txt files. At the moment file formats Cuboid and Particle are supported. More...

#include <TxtReader.h>

Collaboration diagram for FileReader:

Static Public Member Functions
static int	readFile (ParticleContainer &particles, const std::string &filename)
	Read txt files containing cuboid or particle data. More...

Static Private Member Functions
static int	readCuboid (ParticleContainer &particles, std::ifstream &input_file)
	Helper method to read files containing cuboids. More...
static int	readParticle (ParticleContainer &particles, std::ifstream &input_file)
	Helper method to read files containing particles. More...

Detailed Description

Class for reading particles from txt files. At the moment file formats Cuboid and Particle are supported.

Member Function Documentation

readCuboid()

int FileReader::readCuboid ( ParticleContainer &  particles, std::ifstream &  input_file  )

staticprivate

Helper method to read files containing cuboids.

Parameters

particles	Particle Container to store the particles in.
input_file	Input file stream being currently at the position of that line, in which the number of cuboids is specified.

Only parses files correctly which adhere to the particle format. If the file pretends to contain valid cuboid data, but violates the input format for some reason, this method may provide erroneous data. If an error is detected, this function returns -1. The key word Cuboid in the first non comment line of a file indicates the cuboid file format. Look at 2D-cuboid.collision.txt for reference.

Returns

0, if the operation was successful, -1 otherwise

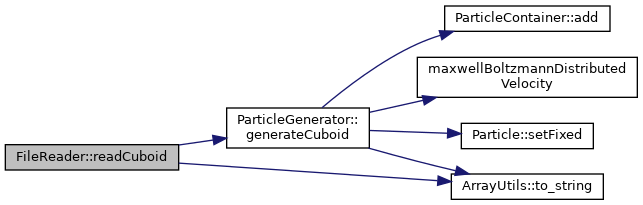

Here is the call graph for this function:

Here is the caller graph for this function:

readFile()

int FileReader::readFile ( ParticleContainer &  particles, const std::string &  filename  )

static

Read txt files containing cuboid or particle data.

Parameters

particles	Particle Container to store the particles in.
filename	Path to the file to be read.

Valid file formats are Cuboid and Particle. The format of a txt file must be specified in the first line that is not a comment. Look at the files in the input file for more information. Any other file format will be rejected. If the specified file format is violated, the data may not be read correctly.

Returns

0, if the operation was successful, -1 if the file format is violated, -2 if the file could not be opened and -3 if the the file format is unknown

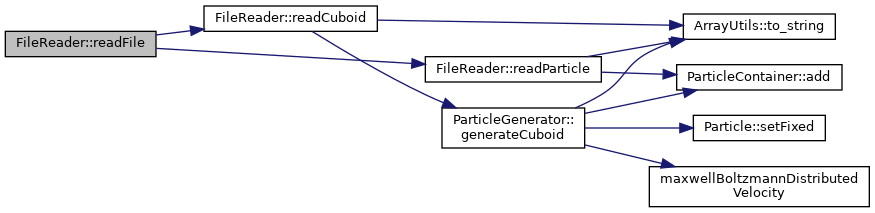

Here is the call graph for this function:

Here is the caller graph for this function:

readParticle()

int FileReader::readParticle ( ParticleContainer &  particles, std::ifstream &  input_file  )

staticprivate

Helper method to read files containing particles.

Parameters

particles	Particle Container to store the particles in.
input_file	Input file stream being currently at the position of that line, in which the number of particles is specified.

Only parses files correctly which adhere to the particle format. If the file pretends to contain valid particle data, but violates the input format for some reason, this method may provide erroneous data. If an error is detected, this function returns -1. The key word Particle in the first non comment line of a file indicates the particle file format. Look at eingabe-sonne.txt for reference.

Returns

0, if the operation was successful, -1 otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• /home/runner/work/MolSim/MolSim/src/fileHandling/reader/TxtReader/TxtReader.h
• /home/runner/work/MolSim/MolSim/src/fileHandling/reader/TxtReader/TxtReader.cpp
