FileHandler Class Reference

Wrapper class for file handling. More...

#include <FileHandler.h>

Collaboration diagram for FileHandler:

Public Types
enum class	outputFormat {   vtk , xyz , xml , txt ,   invalid }
	Supported output formats. More...
enum class	inputFormat { txt , xml , invalid }
	Supported input formats. More...

Public Member Functions
void	writeToFile (ParticleContainer &particles, int iteration, outputFormat format, std::string &baseName)
	Write particles to a file. More...

Static Public Member Functions
static void	readFile (ParticleContainer &particles, std::string &filePath, inputFormat format)
	Read particles from a txt-file. More...

Private Attributes
outputWriter::VTKWriter	vtkWriter
outputWriter::XYZWriter	xyzWriter

Detailed Description

Wrapper class for file handling.

The main goal of this class is to abstract the file handling to make it convenient in the future to add more input and output methods.

Member Enumeration Documentation

inputFormat

enum FileHandler::inputFormat

strong

Supported input formats.

This enum class enables the user to select the desired input format.

Enumerator
txt
xml
invalid

outputFormat

enum FileHandler::outputFormat

strong

Supported output formats.

This enum class enables the user to select the desired output format in the writeToFile method.

Enumerator
vtk
xyz
xml
txt
invalid

Member Function Documentation

readFile()

void FileHandler::readFile ( ParticleContainer &  particles, std::string &  filePath, inputFormat  format  )

static

Read particles from a txt-file.

Parameters

particles	Particle container in which the newly read-in particles will be stored.
filePath	File path to the input txt-file of the particles to be read.
format	Type of the input file.

Supported txt file formats at the moment: Particle, Cuboid.

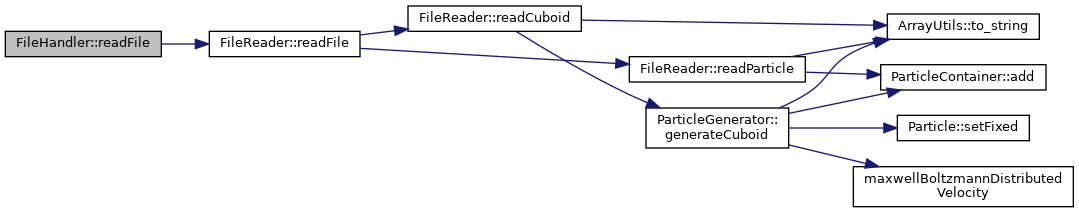

Here is the call graph for this function:

Here is the caller graph for this function:

writeToFile()

void FileHandler::writeToFile	(	ParticleContainer &	particles,
		int	iteration,
		outputFormat	format,
		std::string &	baseName
	)

Write particles to a file.

Parameters

particles	Particles which will be written to the file.
iteration	Current iteration step of the simulation.
format	Type of the output file.
baseName	Base name of the output file.

Write particles to a file. You can choose between different output formats. The file will be created in the directory, in which this program was executed.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

vtkWriter

outputWriter::VTKWriter FileHandler::vtkWriter

private

xyzWriter

outputWriter::XYZWriter FileHandler::xyzWriter

private

---

The documentation for this class was generated from the following files:

• /home/runner/work/MolSim/MolSim/src/fileHandling/FileHandler.h
• /home/runner/work/MolSim/MolSim/src/fileHandling/FileHandler.cpp
